Price range: $27.98 through $82.98
ANT-24EMA-40A 40A Continuous Discharge Duration >1 hour, 80A Continuous Discharge Duration >1 min,
ANT-24EMA-60A: 60A Continuous Discharge Duration >1 hour, 120A Continuous Discharge Duration >1 min
ANT-24EMA-80A: 80A Continuous Discharge Duration >1 hour, 160A Continuous Discharge Duration >1 min,
ANT-24EMA-100A: 100A Continuous Discharge Duration >1 hour, 200A Continuous Discharge Duration >1 min,
ANT-24EMA-120A: 120A Continuous Discharge Duration >1 hour, 240A Continuous Discharge Duration >1 min,
The continuous discharge duration of the battery is affected by various factors including ambient temperature, BMS heat dissipation performance and equipment sealing structure. All marked discharge durations are for reference only, and the actual performance shall be subject to on-site working conditions.

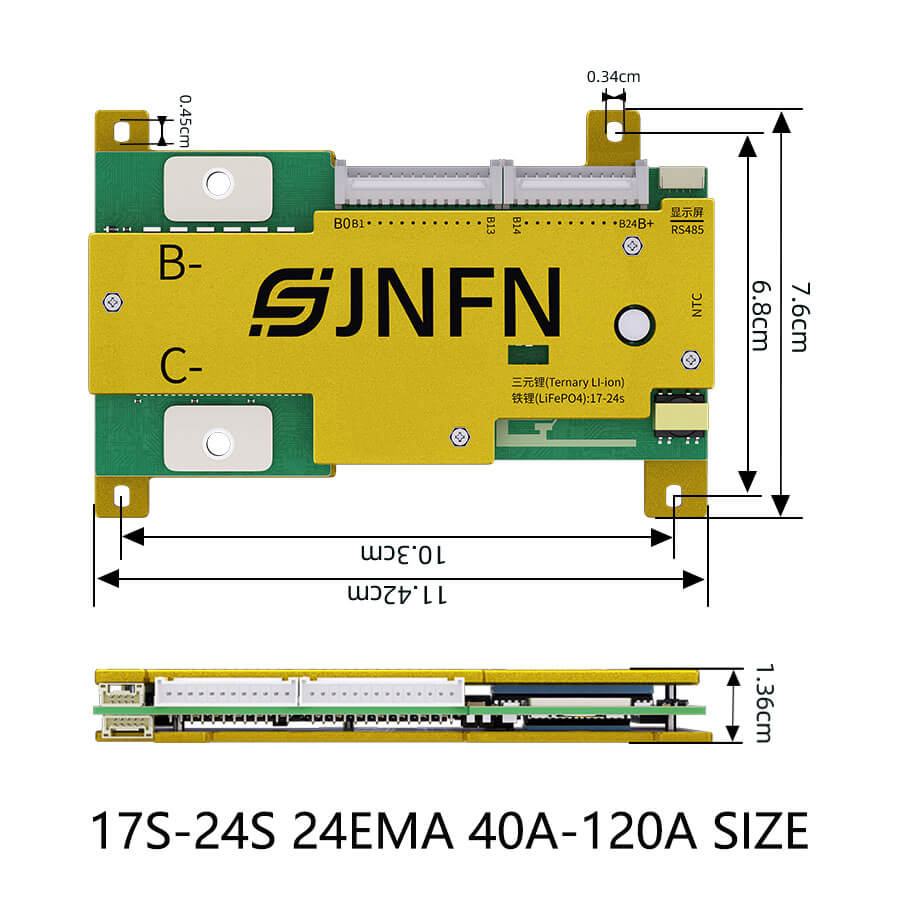

ANT-24EMA RS485 Bluetooth Smart BMS is a highly integrated smart BMS solution developed by ANT BMS for 17S~24S lithium battery packs, featuring compact size, low power consumption, and efficient balancing.
| Â Item | Description |
|---|---|
| Supported Cell Types | NCM, LFP, LTO, Sodium-ion |
| Battery String Count | NCM: 17-24S, LFP: 17-24S, LTO: 17-24S, Sodium-ion: 17-24S |
| Balancing Method | Passive Balancing |
| Cell Voltage Sampling Range | 1V-5V |
| Sampling Frequency | 4Hz |
| Cell Voltage Accuracy | 3mV |
| Operating Voltage Range | 24-96V |
| Current Sampling Error | ±2% |
| Operating Power Consumption | ≤0.5mA |
| Standby Power Consumption | ≤0.35mA |
| Shutdown Power Consumption | ≤0.1mA |
| Operating Temperature | -40℃-85℃ |

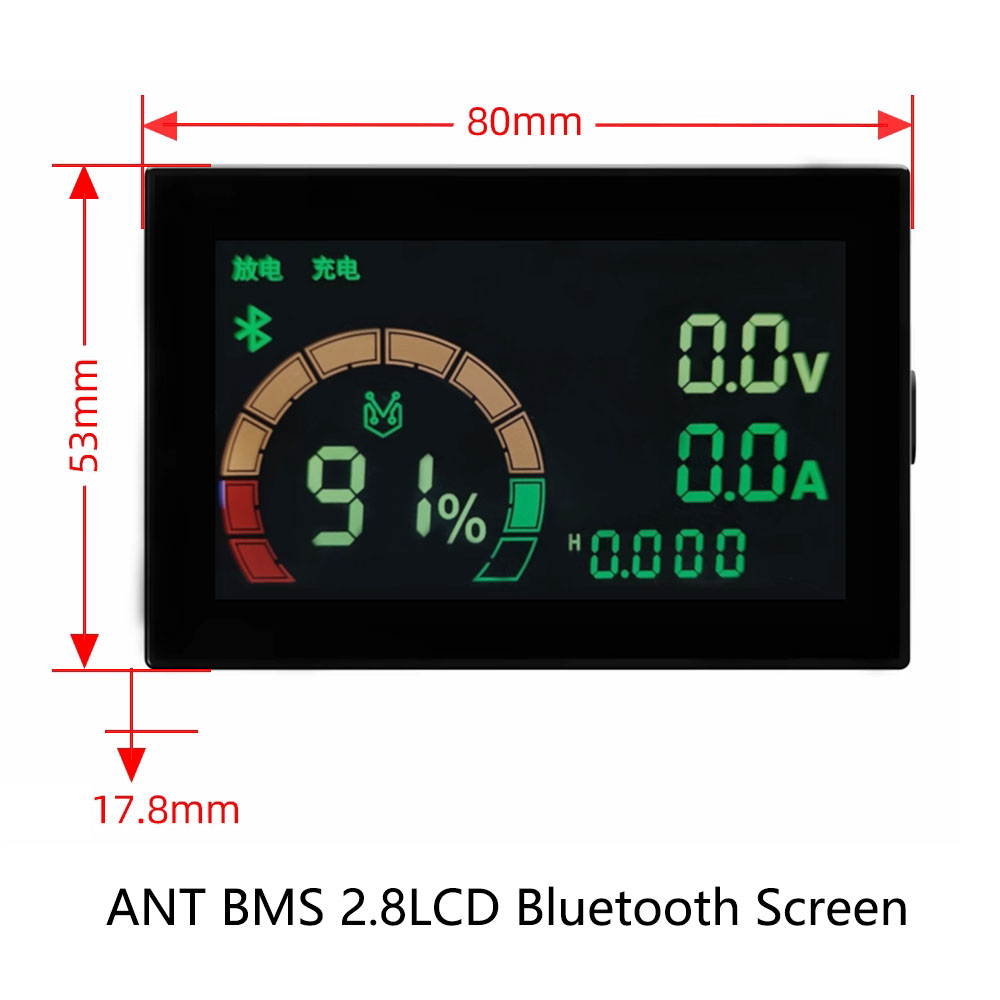

| Optional | ANT-24EMA-40A Standard, ANT-24EMA-40A Standard with 2.8 Bluetooth Screen, ANT-24EMA-40A Standard with 2.8 Bluetooth Screen + 3M Extension Cable, ANT-24EMA-40A Standard with 2.8 Bluetooth Screen + 5M Extension Cable, ANT-24EMA-60A Standard, ANT-24EMA-60A Standard with 2.8 Bluetooth Screen, ANT-24EMA-60A Standard with 2.8 Bluetooth Screen + 3M Extension Cable, ANT-24EMA-60A Standard with 2.8 Bluetooth Screen + 5M Extension Cable, ANT-24EMA-80A Standard, ANT-24EMA-80A Standard with 2.8 Bluetooth Screen, ANT-24EMA-80A Standard with 2.8 Bluetooth Screen + 3M Extension Cable, ANT-24EMA-80A Standard with 2.8 Bluetooth Screen + 5M Extension Cable, ANT-24EMA-100A Standard, ANT-24EMA-100A Standard with 2.8 Bluetooth Screen, ANT-24EMA-100A Standard with 2.8 Bluetooth Screen + 3M Extension Cable, ANT-24EMA-100A Standard with 2.8 Bluetooth Screen + 5M Extension Cable, ANT-24EMA-120A Standard, ANT-24EMA-120A Standard with 2.8 Bluetooth Screen, ANT-24EMA-120A Standard with 2.8 Bluetooth Screen + 3M Extension Cable, ANT-24EMA-120A Standard with 2.8 Bluetooth Screen + 5M Extension Cable |
|---|
