ANT BMS 3S-4S ANT-04ADA RS485 Bluetooth Smart BMS 200A-400A 1000mA Active Balancing 12V NCM LFP LTO Sodium-ion Battery Protection Board JNFN BMS

Leading The Technology, Ensuring Safety, ANT Smart BMS Guards You!

Sale!

ANT BMS 3S-4S ANT-04ADA RS485 Bluetooth Smart BMS 200A-400A 12V NCM LFP LTO Sodium-ion Battery Protection Board JNFN BMS

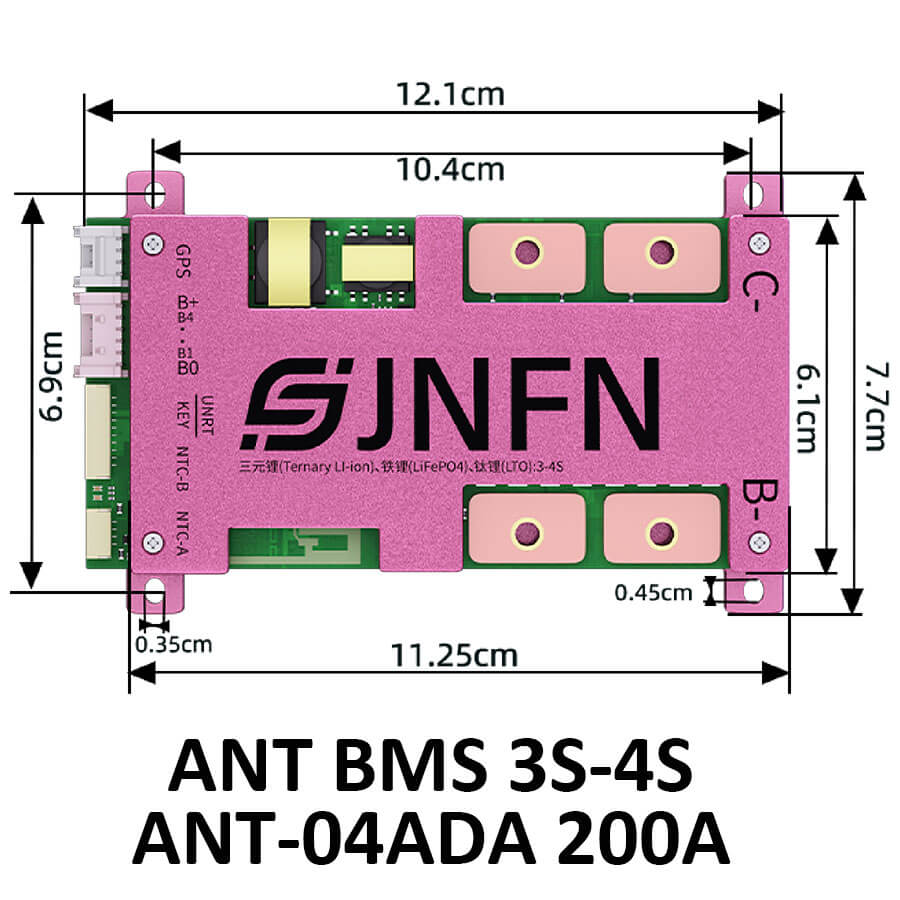

ANT BMS 3S-4S ANT-04ADA RS485 Bluetooth Smart BMS 200A 12V NCM LFP LTO Sodium-ion Battery Protection Board JNFN BMS

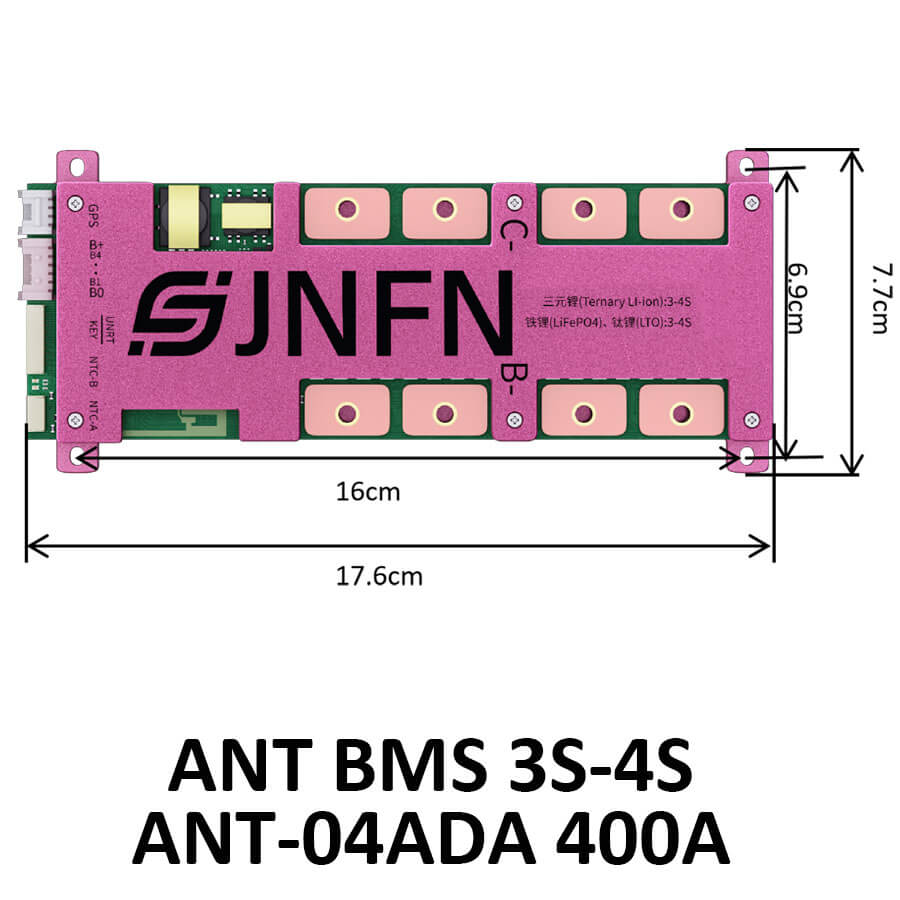

ANT BMS 3S-4S ANT-04ADA RS485 Bluetooth Smart BMS 400A 12V NCM LFP LTO Sodium-ion Battery Protection Board JNFN BMS

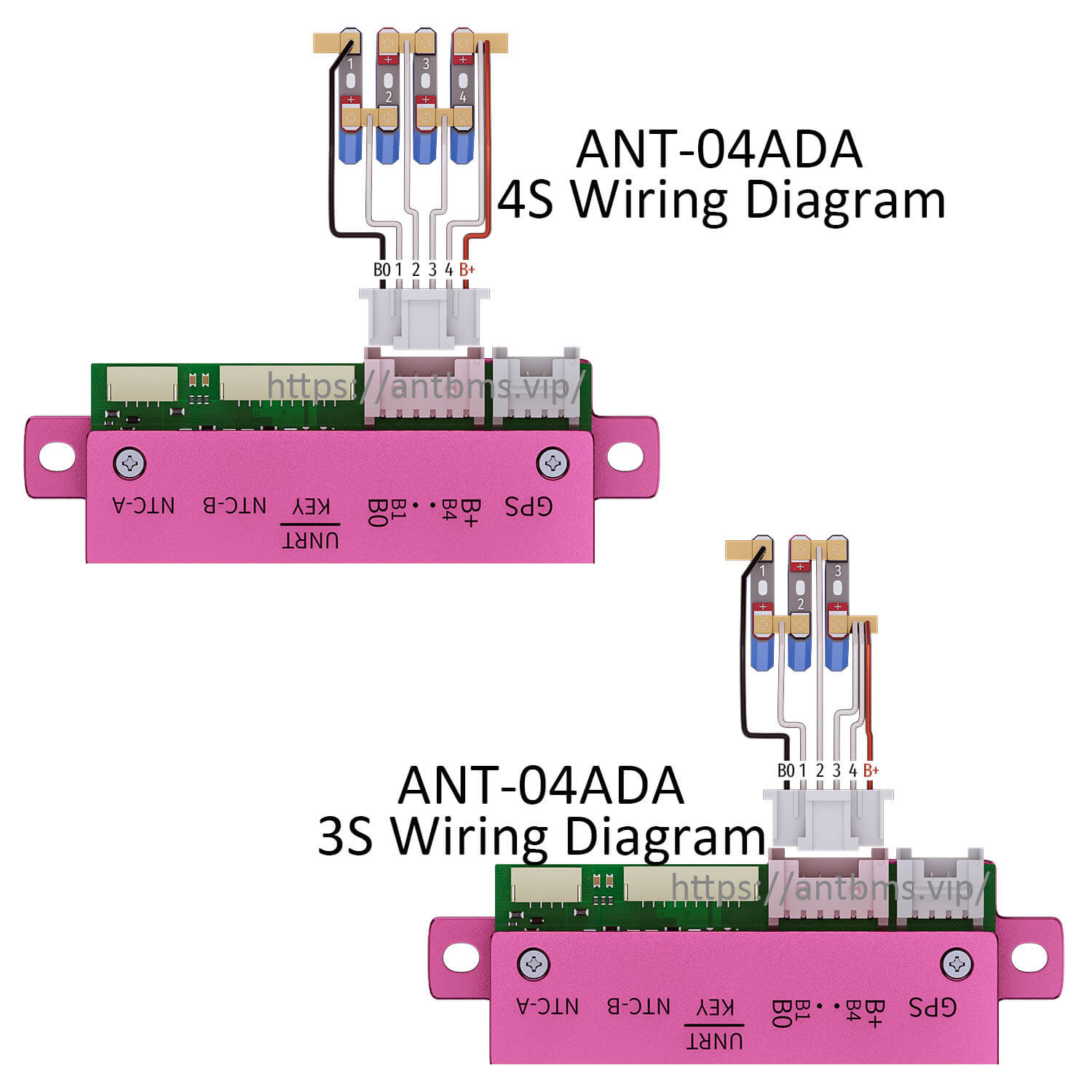

ANT BMS 3S-4S ANT-04ADA RS485 Bluetooth Smart BMS 200A-400A 12V NCM LFP LTO Sodium-ion Battery Protection Board JNFN BMS Wiring Diagram antbms.vip

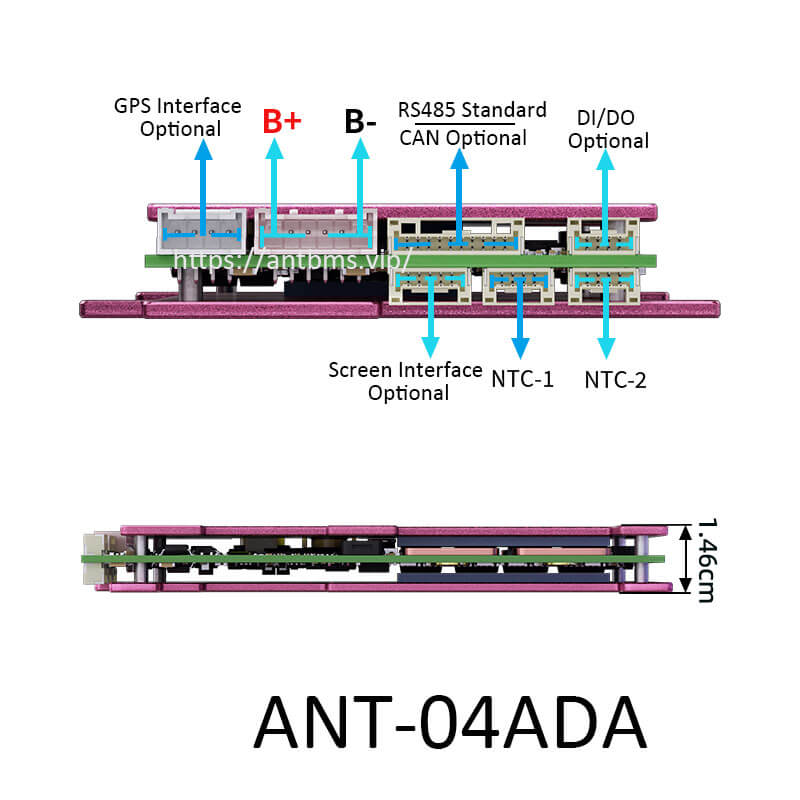

ANT BMS 3S-4S ANT-04ADA RS485 Bluetooth Smart BMS 200A-400A 12V NCM LFP LTO Sodium-ion Battery Protection Board JNFN BMS Interface Diagram-antbms.vip

ANT BMS 3S-4S ANT-04ADA RS485 Bluetooth Smart BMS 200A-400A 1000mA Active Balancing 12V NCM LFP LTO Sodium-ion Battery Protection Board JNFN BMS

Price range: $46.98 through $105.98

ANT Smart BMS

Continuous Current

Communication Port

LCD Screen

Clear

Shipping >

Standard: US$9.98 or FREE (orders ≥ US$99)

Delivery time：7-20 days
77.8% are ≤ 10 days
90.2% are ≤ 15 days
Courier company: USPS,Post Office & Other

Express: US$29.98

Delivery time：5-12 days
79.8% are ≤ 7 days
93.2% are ≤ 10 days
Courier company: Commercial Express

Shopping security >

Safe Payment Options
Secure privacy

Secure logistics
Purchase protection

ANT-04ADA-200A: 200A Continuous Discharge Duration >1 hour, 400A Continuous Discharge Duration >1 min
ANT-04ADA-400A: 400A Continuous Discharge Duration >1 hour, 800A Continuous Discharge Duration >1 min,
The continuous discharge duration of the battery is affected by various factors including ambient temperature, BMS heat dissipation performance and equipment sealing structure. All marked discharge durations are for reference only, and the actual performance shall be subject to on-site working conditions.

Description
Additional information

Description

Item	Description
Supported Cell Types	NCM, LFP, LTO, SIB
Number of Battery Strings	NCM: 3-4 strings, LFP: 3-4 strings, LTO: 3-4 strings, SIB: 3-4 strings
Balancing Method	1000mA Active Balancing
Single Cell Sampling Voltage Range	1V-5V
Sampling Frequency	1 Hz during balancing, 4 Hz when not balancing
Single Cell Voltage Measurement Accuracy	3mV
Operating Voltage Range	6V-18V
Current Measurement Error	±2%
Operating Power Consumption	<14mA
Standby Power Consumption	<0.6mA
Operating Temperature	-40℃-85℃ / -40℃-85℃
Bluetooth	4.0 / 4.0
TTL Interface	Optional
RS485 Interface	Standard
CAN Interface	Optional
GPS Interface	Optional
Display Interface	Optional
External Heating Module	Optional

Additional information

Continuous Current	ANT-04ADA-200A Standard, ANT-04ADA-400A Standard
Communication Port	RS485, RS485+CAN
LCD Screen	NO LCD Screen, With 2.8 Bluetooth Screen, With 2.8 Bluetooth Screen + 3M Extension Cable, With 2.8 Bluetooth Screen + 5M Extension Cable
