Price range: $39.98 through $81.98
ANT-10ADA-50A: 50A Continuous Discharge Duration >1 hour, 100A Continuous Discharge Duration >2 min
ANT-10ADA-100A: 100A Continuous Discharge Duration >1 hour, 200A Continuous Discharge Duration >2 min,
The continuous discharge duration of the battery is affected by various factors including ambient temperature, BMS heat dissipation performance and equipment sealing structure. All marked discharge durations are for reference only, and the actual performance shall be subject to on-site working conditions.
| Item | Description |
|---|---|
| Supported Cell Types | NCM, LFP, LTO, SIB |

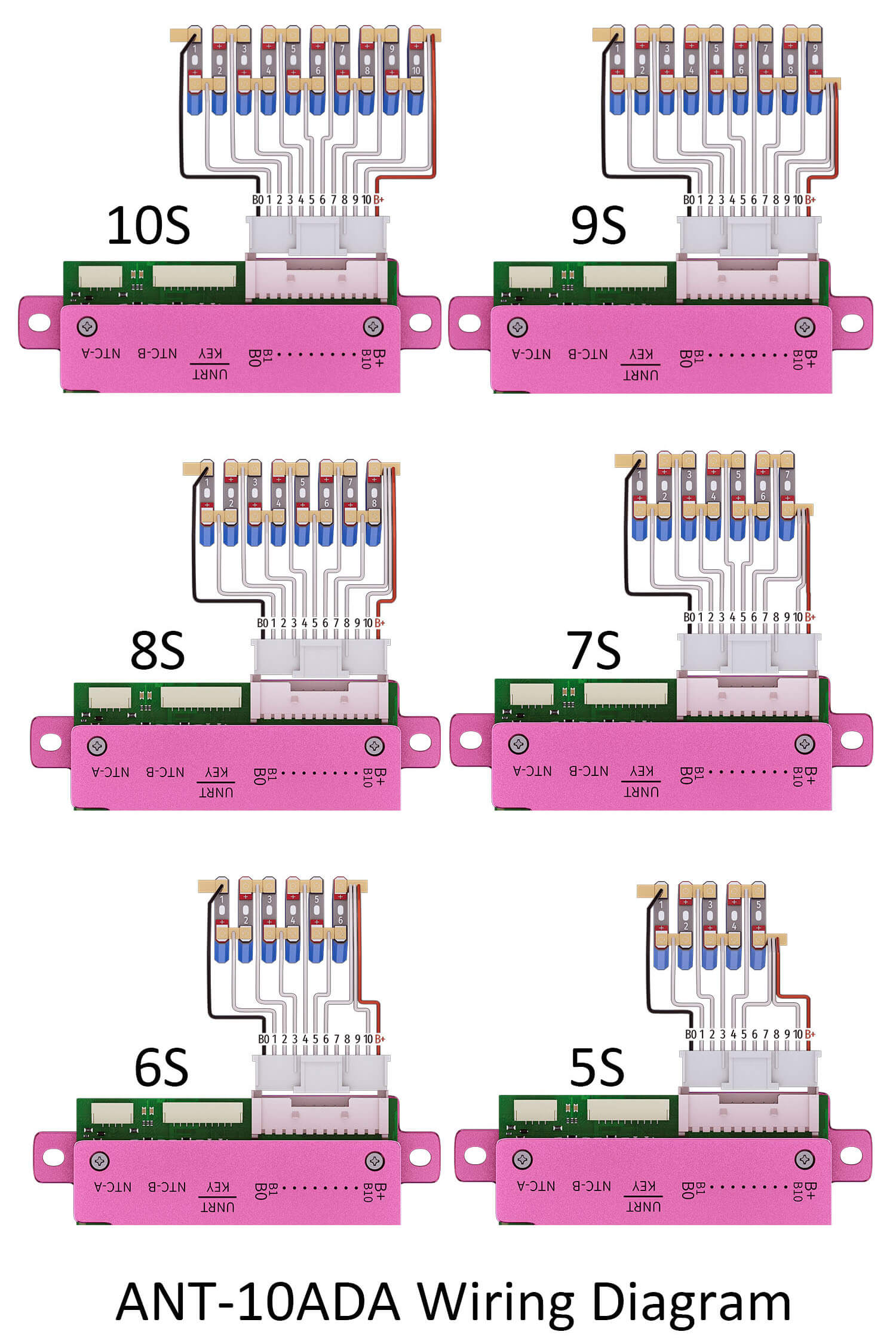

| Number of Battery Strings | NCM: 5-10 strings, LFP: 6-10 strings, LTO: 6-10 strings, SIB: 6-10 strings |
| Balancing Method | 1000mA Active Balancing |
| Single Cell Sampling Voltage Range | 1V-5V |
| Sampling Frequency | 1 Hz during balancing, 4 Hz when not balancing |
| Single Cell Voltage Measurement Accuracy | 3mV |
| Operating Voltage Range | 15V-45V |
| Current Measurement Error | ±2% |
| Operating Power Consumption | <14mA |
| Standby Power Consumption | <0.6mA |
| Operating Temperature | -40℃-85℃ / -40℃-85℃ |
| Bluetooth | 4.0 / 4.0 |
| TTL Interface | Optional |
| RS485 Interface | Standard |
| CAN Interface | Optional |
| GPS Interface | Optional |
| Display Interface | Optional |
| External Heating Module | Optional |
| Continuous Current | ANT-10ADA-50A Standard, ANT-10ADA-100A Standard |
|---|---|
| Communication Port | RS485, RS485+CAN |
| LCD Screen | NO LCD Screen, With 2.8 Bluetooth Screen, With 2.8 Bluetooth Screen + 3M Extension Cable, With 2.8 Bluetooth Screen + 5M Extension Cable |
